Product Name

D Station Tapping Tools

Brief Introduction
Installed in the D station ,suitable for all the 85 series of thick turret punch presses
Product Details

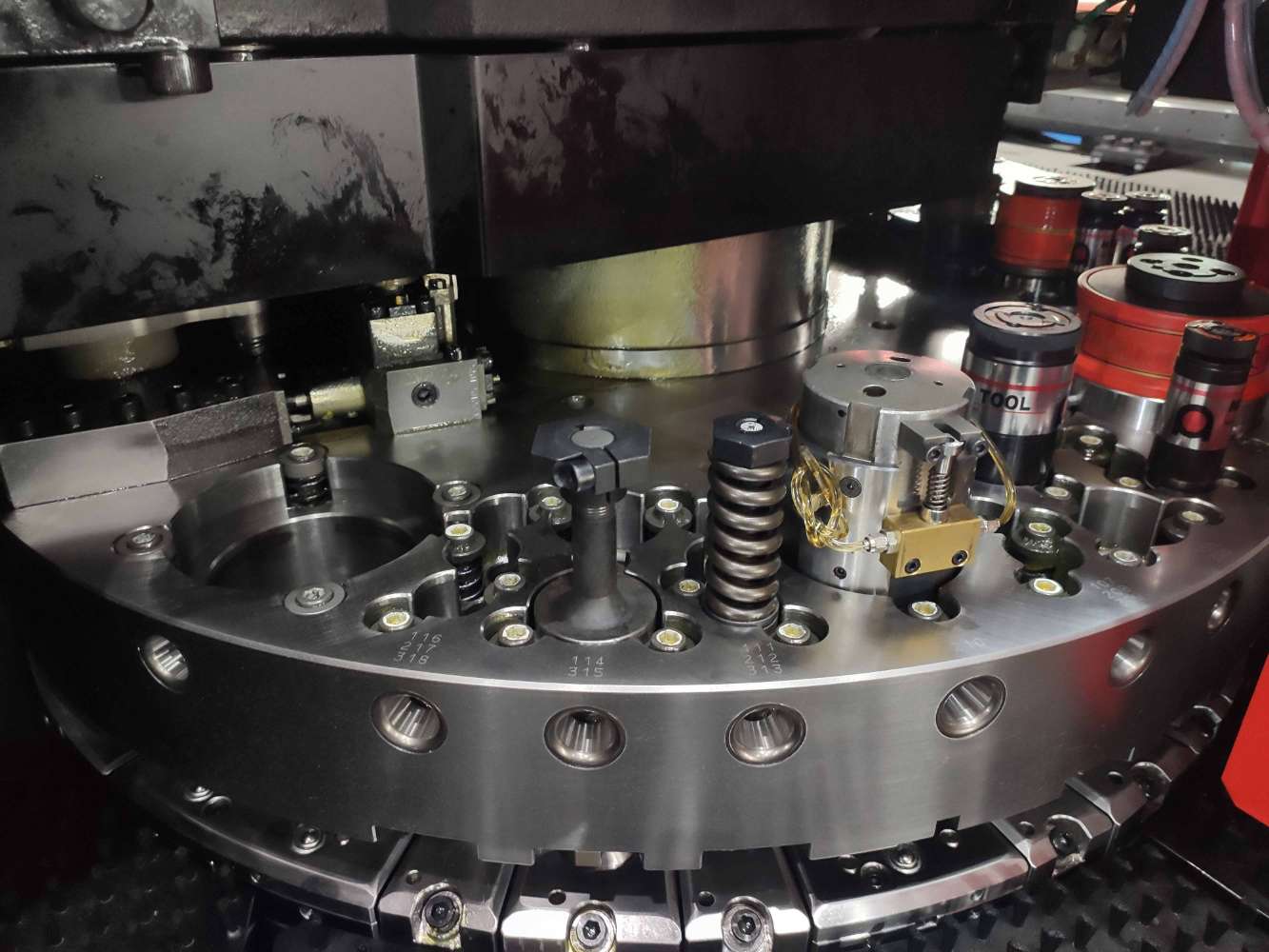

●The tapping tool will be installed in the D station to make the tapping for the products


●Max. Tapping Speed:SPM 80


●Tap Dimension: M3,M4,M5,M6&M8 of Metric standards and the related ones for American standards , British standards and Custom-made taps


● By changing the different sizes of detachable tapping heads,the tapping unit can tap different sizes of prepunched holes


● Max. thickness of material plus extrusion forming :  M3 4mm, M4 6mm, M5 6.5mm, M6 8mm ,M8 10mm


●Cooling of the Taps: Appropriate lubricant will be sprayed smoothly to cool the taps so as to increase the lifespan of the taps

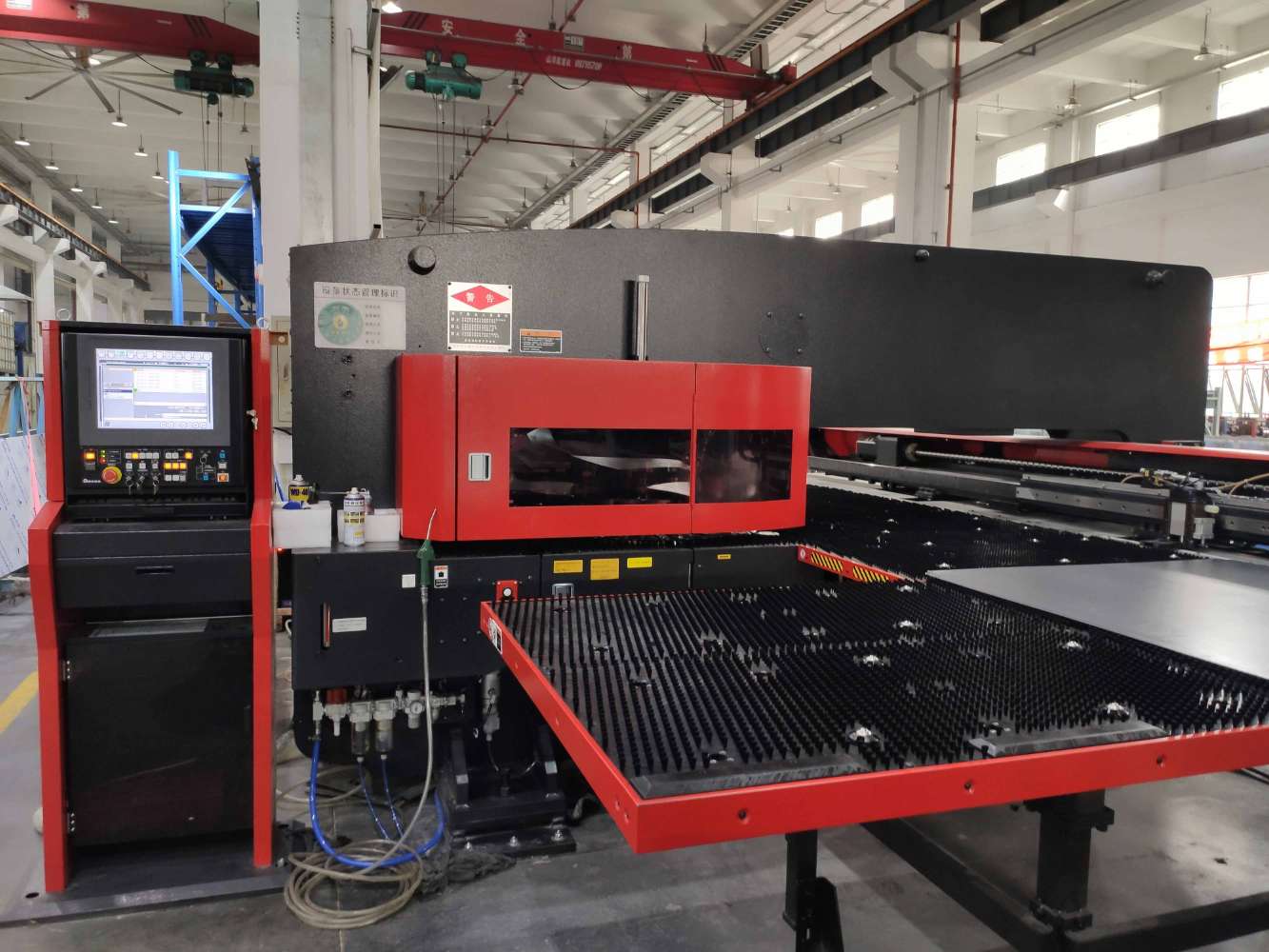

●Tapping Tools can be used for all  85 series of  CNC thick turret  punch presses,such as Amada,  Prima Power ,

   Accurpress,DeraTech,Jin Fang Yuan, Yawei, Dadong,Tailift,Ston as well as Trumpf ,etc
